Special Material Bearings

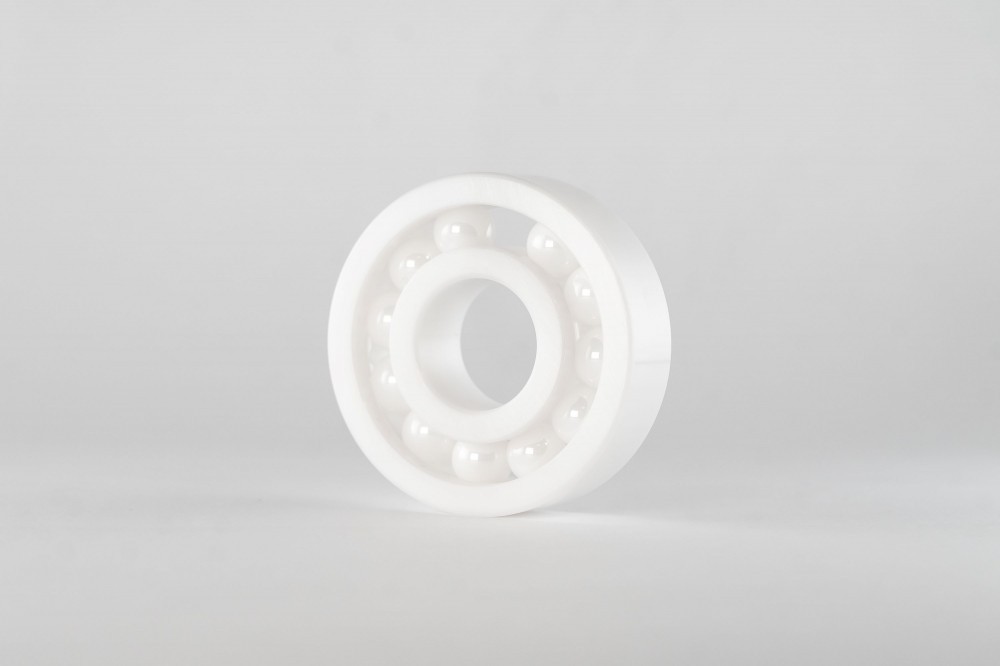

17x26x5mm Ceramic Bearings 6803 ZRO2 Zirconia Oxide Full Ceramic Bearings
Product Introduction
Products Description
Ceramic hybrid bearings are widely used in electric motors, aerospace applications, performance racing vehicles, laboratory equipment, under water applications and more. Any application that requires higher speeds, lower friction and longer life are ideal for ceramic hybrid bearings.
What are the benefits of ceramic bearings?
Not be to be confused with hybrid ceramic bearings, full ceramic bearings have ceramic balls and rings, boasting harder than steel properties. ZrO2 or zirconium dioxide is a tough ceramic material with very similar expansion properties to steel.
The ZrO2 full ceramic bearings listed below are available with cages (or retainers) made from PEEK, PTFE. Bearings with bore sizes from 8mm upwards can also be fitted with 316 stainless steel cages. In addition, we keep stock of full complement ZrO2 bearings. These bearings have no cage and extra balls. For full complement type, the load ratings are approximately 20% higher but the maximum speed is up to 70% lower.
As for bearings with cages, PEEK cages are generally the option available from stock due to the strength and durability of PEEK. If an alternative cage material is required to cope with particular chemicals or temperature extremes beyond the range of PEEK, these can be produced to order.

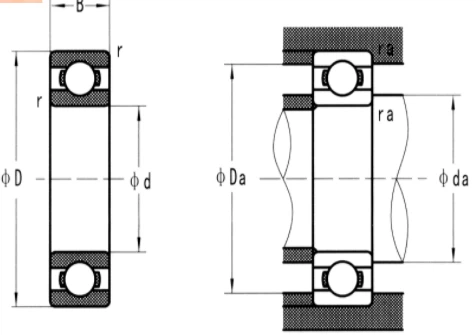

Products parameters
|
Bearing Model |
Dimension (mm) |
|||
|
d |
D |
B |
r min |
|
|
608CE |
8 |
22 |
7 |
0.3 |
|
6000CE |
12 |
21 |
5 |
0.3 |
|
6001CE |
12 |
28 |
8 |
0.3 |
|
6201CE |
12 |
32 |
10 |
0.6 |
|
629CE |
9 |
26 |
8 |
0.3 |
|
639CE |
9 |
30 |
10 |
0.6 |
|
6800CE |
10 |
19 |
5 |
0.3 |
|
6900CE |
10 |
22 |
6 |
0.3 |
|
6000CE |
10 |
26 |
8 |
0.3 |
|
6200CE |
10 |
30 |
9 |
0.6 |
|
6300CE |
10 |
35 |
11 |
0.6 |
|
6801CE |
12 |
21 |
5 |
0.3 |
|
6803CE |
17 |
26 |
5 |
0.3 |
|
6901CE |
12 |
24 |
7 |
0.3 |
|
6902CE |
15 |
28 |
7 |
0.3 |
|
6804CE |
20 |
32 |
7 |
0.3 |
|
6906CE |
30 |
47 |
9 |
0.3 |
|
6202CE |
15 |
35 |
11 |
0.6 |
|
6302CE |
15 |
42 |
13 |
1 |
|
6409CE |
45 |
120 |
29 |
2 |
Product Vedio

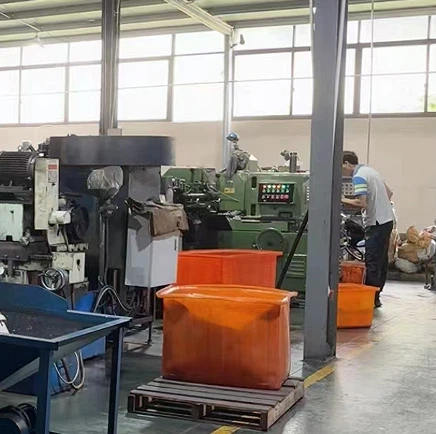

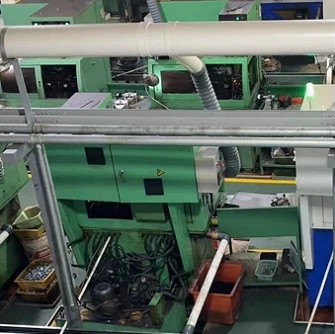

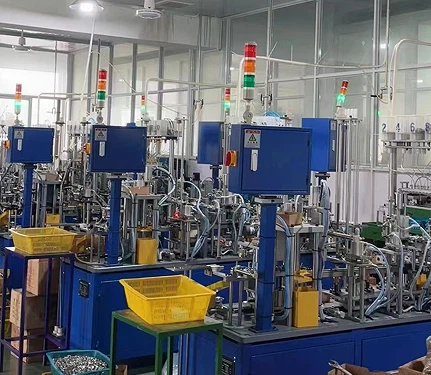

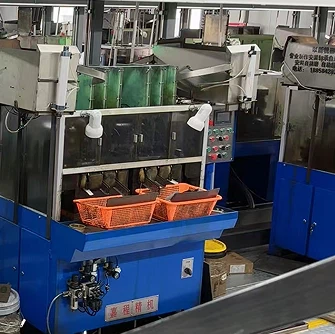

Our factory
