202KRR3 HEX BORE Agricultural Bearing.jpg

202KRR3 HEX BORE Agricultural Bearing

The most prominent feature of this series agricultrual bearings is a hex bore,based on deep groove ball bearing structure. Used in applications where collars, set screws, or any other locking devices are not required. This series incorporates a close fitting metal shield backed by a molded rubber seal. Also available relubricable-prefix “G”.

    Contact us
    product details

    detail Specifications

    202KRR3 Hex Bore Agricultural bearing detail Specifications:

    Material: 52100 Chrome Steel

    Weight: 0.054 kg

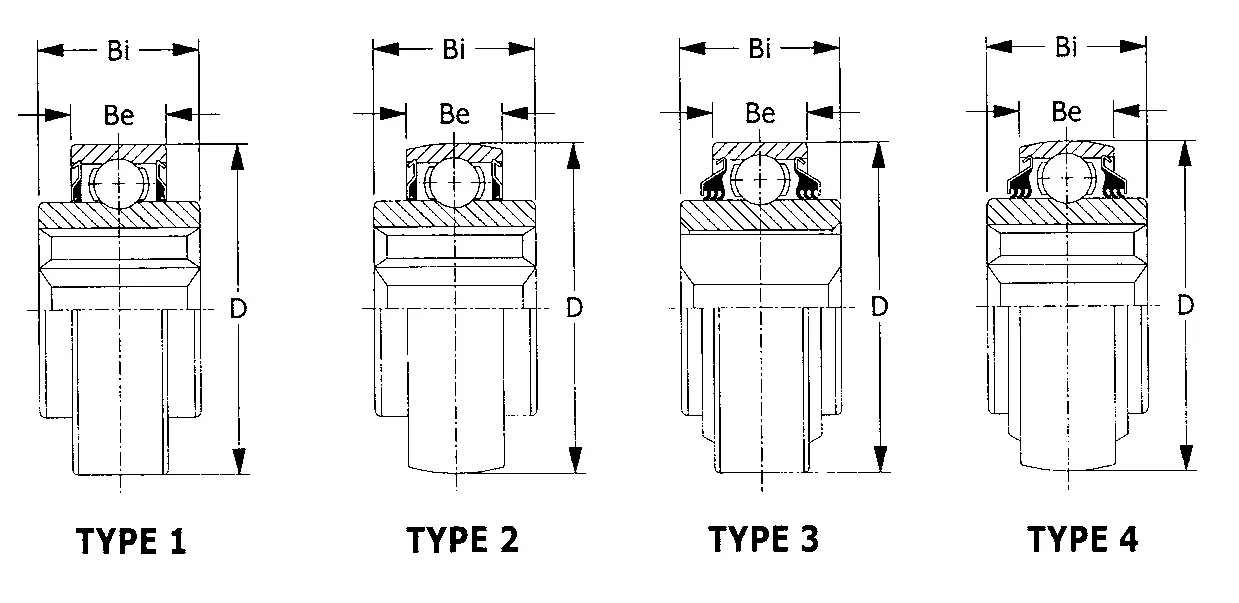

    Product type: Type 1

    Main Dimensions

    Hex Shaft Size: 9/16”

    Inner Diameter (A): 14.3 mm

    Outer Diameter (D): 35 mm

    Be: 11 mm

    Width (Bi): 13 mm

    Static load ratings: 1000 N

    Dynamic load ratings: 2160 N
