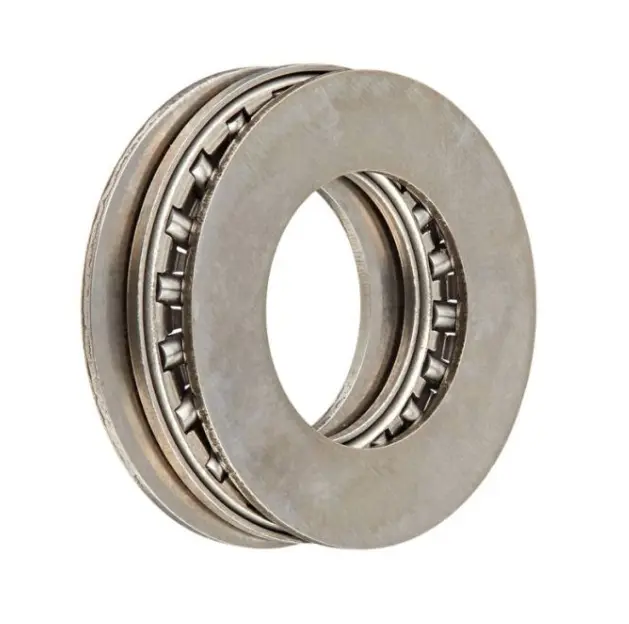

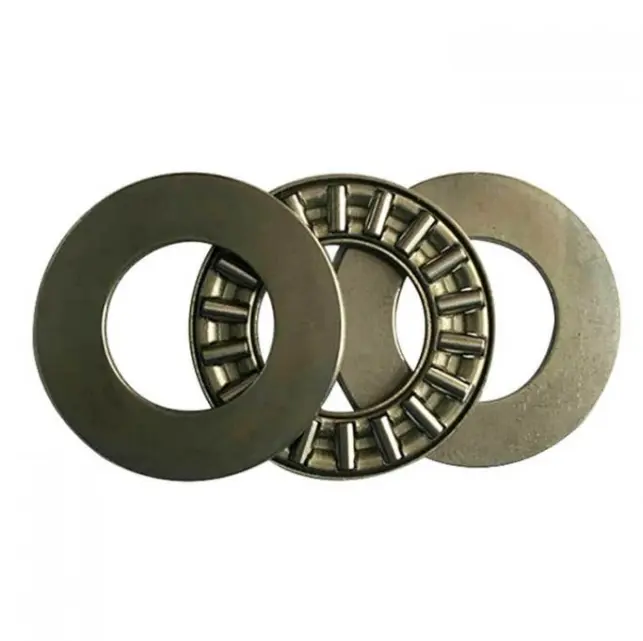

AXK1024 Metric Thrust Needle Roller Bearing
AXK1024 Metric Thrust Needle Roller Bearing | High-Capacity & Compact Design
Product Overview
The AXK1024 is a precision-engineered metric thrust needle roller bearing, designed to deliver exceptional axial load capacity in ultra-compact spaces.
Key Advantages:
✅ Extreme Axial Load Rating – Optimized needle roller arrangement for maximum thrust capacity
✅ Ultra-Slim Profile – Height of just 2mm (critical for space-constrained assemblies)
✅ Hardened Raceways – Surface hardness HRC 58-62 for wear resistance
✅ Interchangeable Design – Conforms to DIN 5405 international standards
✅ Cost-Efficient – Longer service life reduces replacement frequency
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | AXK1024 |
| Inner Diameter (d) | 10 mm (0.394") |
| Outer Diameter (D) | 24 mm (0.945") |
| Height (T) | 2 mm (0.079") |
| Washer Material | GCr15 Bearing Steel |
| Roller Material | Chrome Steel (AISI 52100) |
| Dynamic Load (Ca) | 8.3 kN |
| Static Load (Coa) | 18.5 kN |
| Limiting Speed | 3,000 RPM (Grease) |
| Operating Temp | -30°C to +120°C |
Typical Applications
AXK1024 bearings excel in high-thrust, low-height scenarios:
-
Automotive Transmissions: Gear shift mechanisms, clutch release systems
-
Industrial Machinery: CNC rotary tables, linear guide end supports
-
Pneumatic Equipment: Valve actuators, compact cylinders
-
Office Automation: Printer paper feed units, scanner mechanisms
-
Medical Devices: Surgical table adjustments, imaging equipment
Why Choose AXK1024 from Xiamen Golden Bridge?
20+ Years of Bearing Excellence – As a leading manufacturer & trader since 2004, we guarantee:
🔹 ISO 9001-Certified Production – Rigorous quality control at every stage
🔹 Global Logistics Network – Timely delivery to 50+ countries
🔹 Technical Support – Engineer-backed application guidance
🔹 Custom Solutions – Modified coatings, tolerances, or seals available
