Agricultural Hub Units BAA-0003.jpg

Agricultural Hub Units BAA-0003

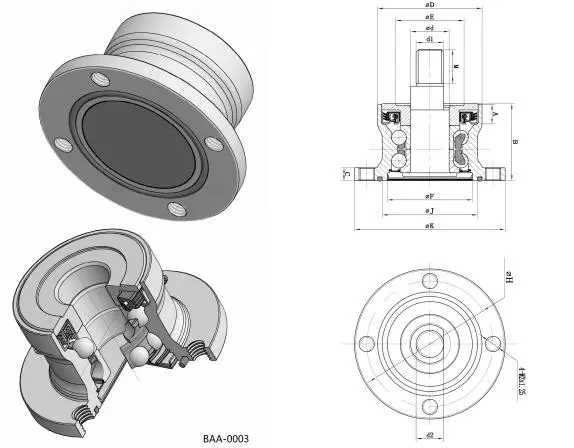

The BAA series Agricultural hub is a fully integrated hub bearing system, greased and sealed for the life of the unit. These hub units have a flanged outer ring that is pre-drilled and tapped to accommodate a disc. The stationary inner ring is fitted with a threaded stub shaft for easy mounting onto virtually any implement arm.

    Contact us
    product details

    detail Specifications

    Agricultural hub units BAA-0003 detail Specifications:

    Material: Bearing steel

    Main Dimensions

    Inner Diameter: 30 mm

    Outer Diameter: 117 mm

    Attachment thread diameter: 4M12X1.25

    Width: 60 mm

    D1: 98 mm

    E: 81 mm

    Basic dynamic load ratings (Cr): 44.90 Kn

    Basic static load ratings (Cor): 34.00 Kn

    Agricultural Hub Units BAA-0003 (2)
