Drawn Cup Needle Roller Bearing HK 0509 Open 5x9x9 Mm

Drawn Cup Needle Roller Bearing – Key Features

✅ Designed for High Dynamic Loads
Ideal for demanding applications requiring high-speed performance and load capacity.
🔩 Compact Design
Features a drawn steel outer shell (cup) with a reduced cross-section, perfect for installations in space-constrained environments.
⚙️ Steel Cage Construction
Ensures precise roller guidance and spacing, which helps minimize friction, vibration, and noise during operation.
🔥 Durable and Heat-Resistant
Rollers made from through-hardened, high-carbon chromium steel provide excellent heat resistance and long-lasting durability under heavy loads.
🛠 Quality Assurance
Manufactured to meet DIN 618-1 and ISO 3245 standards, ensuring consistent quality and reliability.

Product Detail

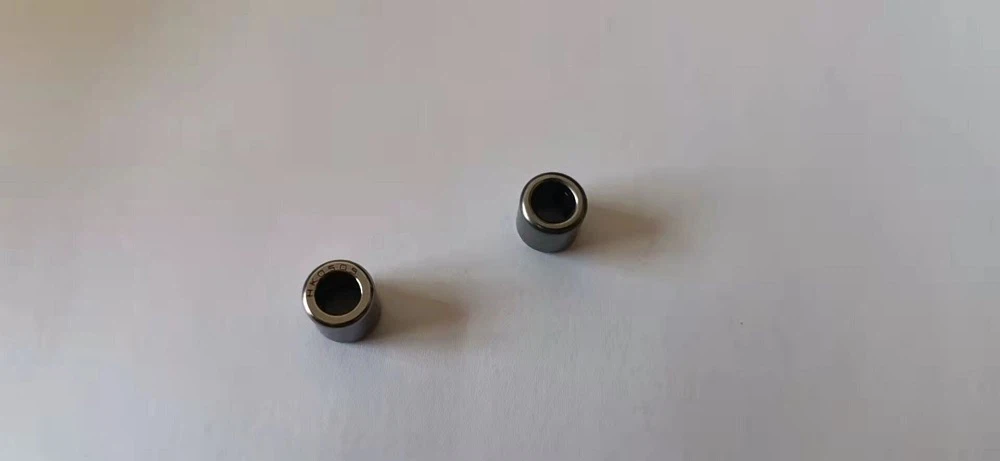

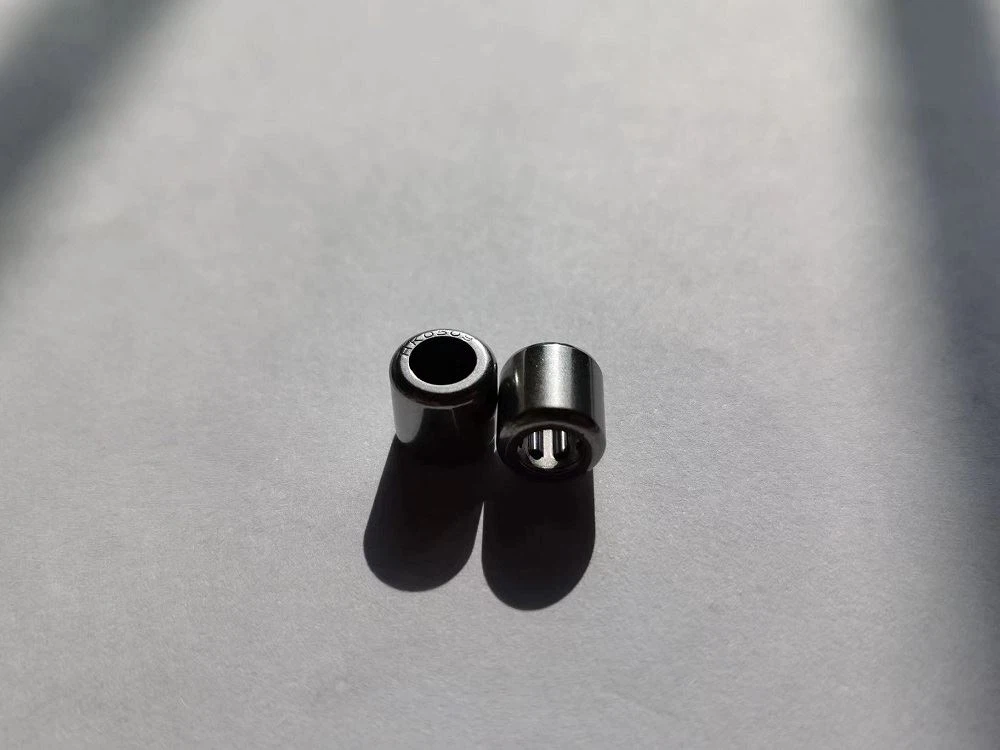

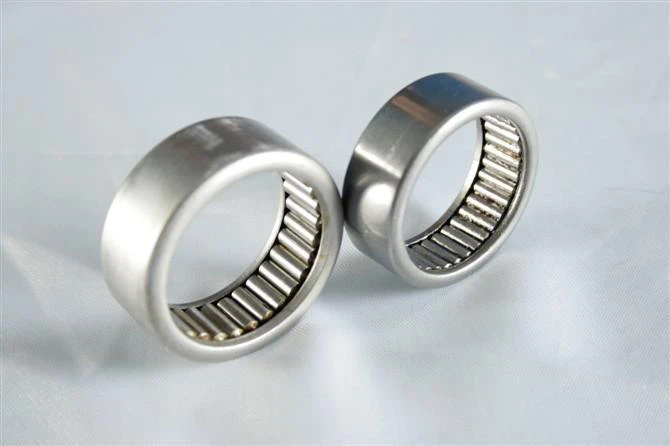

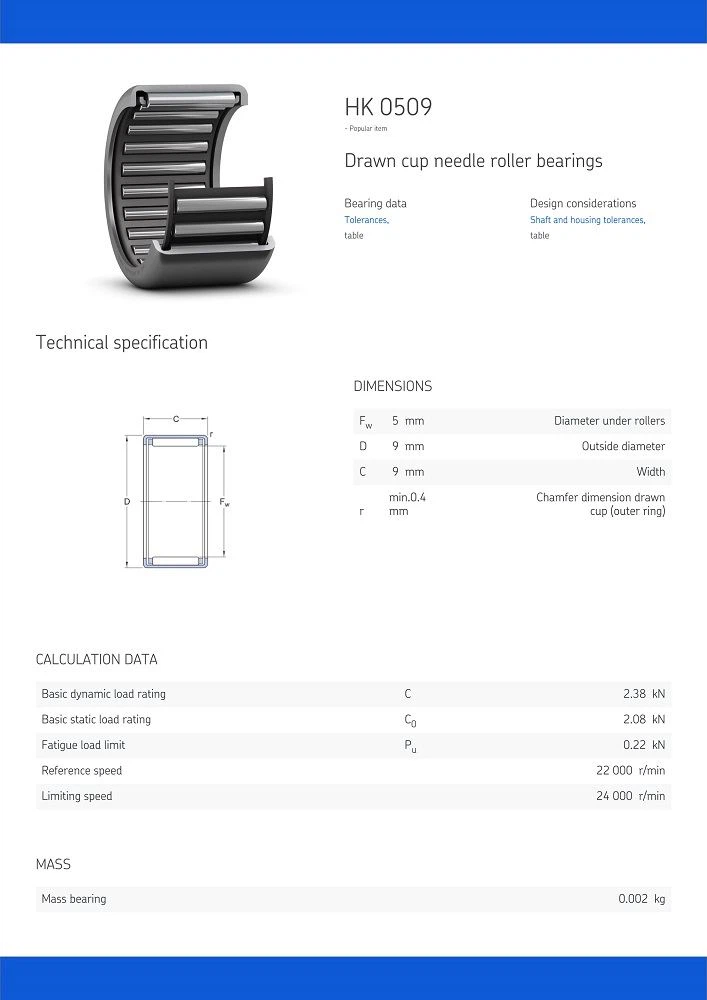

Drawn Cup Needle Roller Bearing HK 0509 open 5x9x9 mm

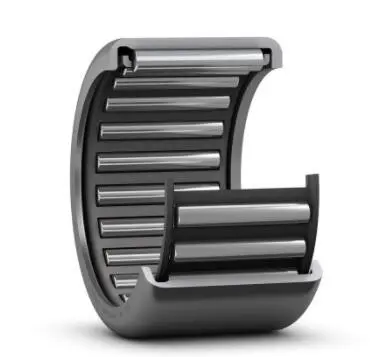

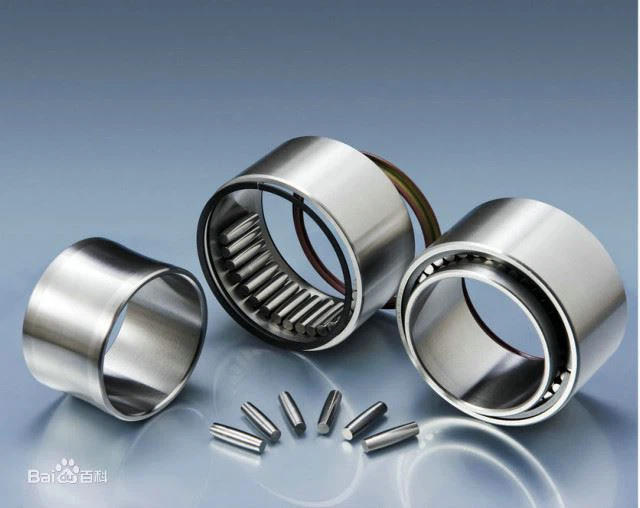

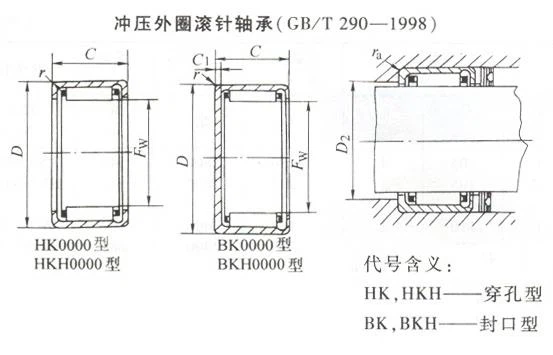

Drawn cup needle roller bearings are needle roller bearings with a deep drawn, thin-walled outer ring with either open ends or a closed end. They are characterized by a very low sectional height and high load carrying capacity. Drawn cup needle roller bearings are typically used in applications where the housing bore cannot be used as a raceway for a needle roller and cage assembly, but where a very compact and economical bearing arrangement is required.

Applications

- Transmissions,transfer cases,engines valve trains

-Steering and braking systems

- Axle support

-Outboard engines

3.Expanded Options

- Assemblies with bearings

- Engineered polymer cages

- Bearings with one or two seals

-Closed end bearings

- Oil holes

Features:

· the drawn cup needle roller bearing is a needle roller bearing with chipless manufactured thin-walled outer rings

· open on both sides

· extremely low section height and the high load carrying capacity

· can be used if the surface of the shaft is suitable as a raceway

· seal: open (without seal); for higher speeds than with sealed ball bearings and easy relubrication

· suitable if the housing bores cannot be designed as raceways for needle roller and cage assemblies

· for particularly space-saving and economical arrangements

· easy to install, can be simply pressed into the housing bore and require no further axial fixation

· In addition to this article, we can also offer bearings of the brands FAG, KOYO, NSK, SKF, SNR, etc. on request.

GB company is specializes in the production of stamped outer ring needle roller bearings.

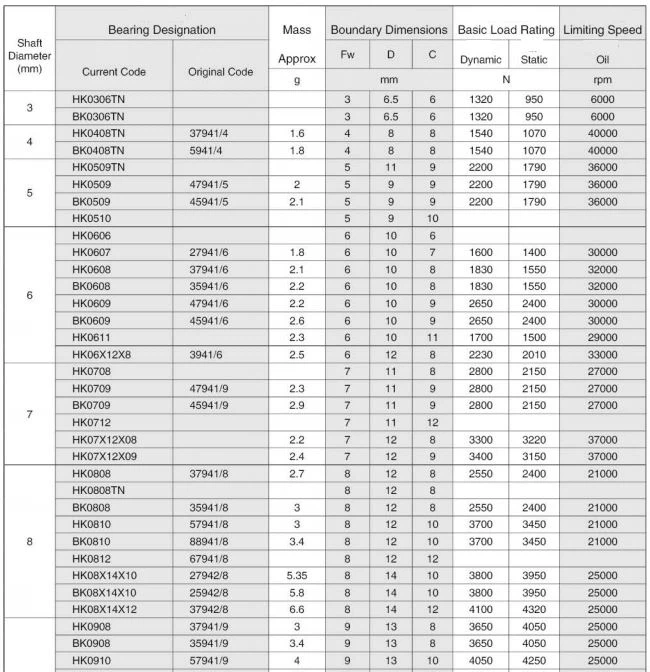

The types of needle roller bearings produced are: HK0306TN, HK0408TN, HK0509, HK0607, HK0608, HK0609, HK0611, HK061208, HK0709, HK071208, HK071209, HK0808, HK0810, HK081410. , HK081412, HK0908

HK0910, HK0911, HK0912, HK091510, HK101308, HK1010, HK1012, HK1015, HK101515, HK101610, HK101612, HK101615, HK101715, HK101812, HK1208, HK1210, HK121712, HK121715, HK121718, HK1212, HK121612, HK121814, HK121912, HK1310, HK1310, HK1312, HK13.5 * 20 * 12, HK1410, HK1412, HK1416, HK152012, HK152016, HK152020, HK1512, HK1514, HK1515, HK1516, HK1522, HK152212, HK152212.5, HK162106, HK162109, HK1612, HK1614, HK1616, HK1617, HK1622, HK17 * 21.5 * 15, HK1712, HK1714, HK1716, HK1718, HK172415, HK172514, HK172515.5, HK172518, HK1812, HK1816, HK192716, HK2010, HK2011, HK2012, HK2014, HK2016, HK2018, HK2020, HK2025, HK2030, HK2030 HK202718, HK202720, HK202730, HK202816, HK202918, HK22 * 28 * 7.5TN, HK2210, HK2212, HK2216, HK2220, HK2230, HK222925, HK222930, HK223014, HK24 * 30 * 7.5TN, HK2512, HK2514, HK2516, HK2518, HK2520, HK2526, HK2538, HK253310, HK253315, HK253520, HK2816, HK2818, HK2820, HK3012, HK3016, HK3018, HK3020, HK30 26, HK3038, HK303812, HK303812, HK303816, HK303824, HKHK303832, HK323811, HK3224, HK3232, HK324032, HK3512, HK3516, HK3520, HK354316, HK354325, HK354332, HK354512, HK364212, HK384830, HK4020, HK4012, HK4016,405032, HK405038 HK4512, HK4516, HK4520, HK455538, HK505716, HK5012, HK5020, HK5025, HK506038, HK5520, HK5525, HK5528, HK6012, HK6020, HK6032 and other models are widely used in automobiles, motorcycles, tractors, general machinery, power tools and other industries.
