NU202-E Single Row Cylindrical Roller Bearing
detail Specifications
NU202-E single row Cylindrical roller bearing detail Specifications:
Material: 52100 Chrome Steel
Construction: Single Row
Seal Type : open type
Cage: Steel,brass or Nylon
Cage Material: Steel,brass or Polyamide (PA66)
Limiting Speed: 15400 rpm
Weight: 0.047kg

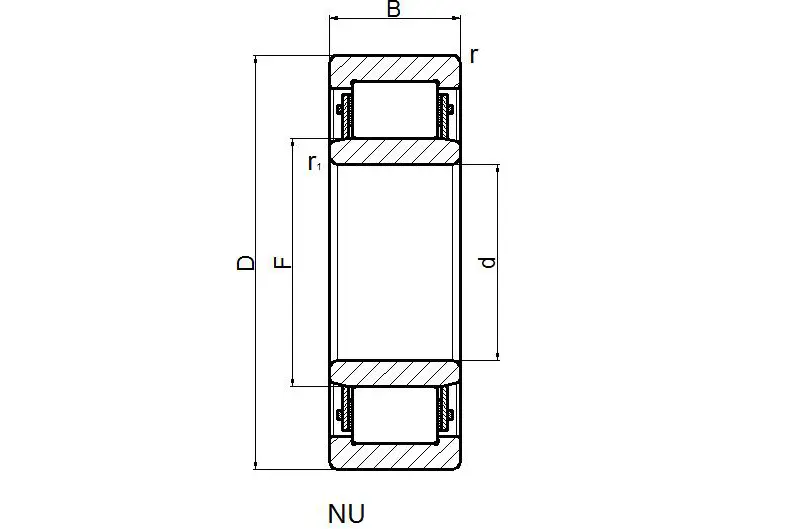

Main Dimensions
Bore diameter (d): 15 mm
Outer diameter ( D): 35 mm
Width (B): 11 mm
Chamfer dimension (r) min.: 0.6 mm
Chamfer dimension (r1) min.: 0.3 mm
Permissible axial displacement (S ) max.: 1.6 mm
Raceway diameter of inner ring (F): 19.3 mm
Dynamic load ratings (Cr): 13.59 KN
Static load ratings (Cor): 9.36 KN
Abutment Dimensions
Diameter shaft shoulder (da) min.: 17.4 mm
Diameter shaft shoulder (da) max.: 18.5 mm
Minimum shaft shoulder (Db) min.: 20 mm
Diameter of housing shoulder (Da) max.: 32.6 mm
Maximum recess radius (ra) max: 0.6 mm
Maximum recess radius (ra1) max: 0.3 mm
